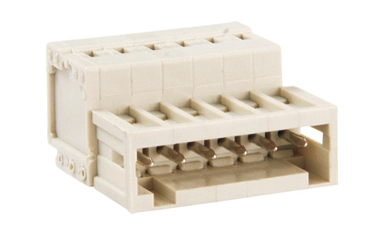

    KLS2-MPKV-2.50 2.5mm Male connectors (fail-safe)

    Number of plies Single deck
    Port number 2~12
    Pitch 2.5mm
    Color Light gray
    Connection technology Spring cage clamp connection technology
    Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158 etc
    Strip length 5~6mm
    Insulation material PA66
    Flammability rating conform to UL94 V0
    Rated voltage V 250V
    Rated current A 4A
    Wire range mm² 0.2~0.5mm²
    UL Rated voltage V 300V
    UL Rated current A 5A
    UL Wire range AWG 24~20
