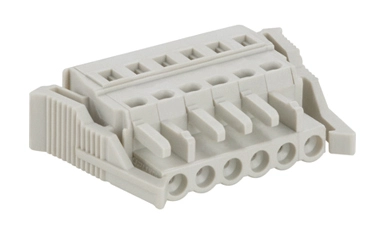

KLS2-MPKCG-5.00 MCS 5.00mm female connector with spring-cage clamp
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS2-MPKCG-5.00
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS2-MPKCG-5.00 MCS 5.00mm female connector with spring-cage clamp
Number of plies Single deck
Port number 2～24
Pitch 5.0mm
Color Light gray
Connection technology Spring cage clamp connection technology
Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158 etc
Strip length 8～9mm
Insulation material PA66
Flammability rating conform to UL94 V0
Rated voltage V 250V
Rated current A 16A
Wire range mm² 0.2～2.5
UL Rated voltage V 300V
UL Rated current A 15A
UL Wire range AWG 24～14
