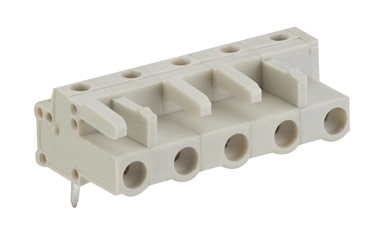

KLS2-MPKCR-7.50 MCS 7.50mm female connector with spring-cage clamp
Number of plies Single deck
Port number 2~24
Pitch 7.5mm
Color Light gray
Connection technology Spring cage clamp connection technology
Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158etc
Strip length 8~9mm
Insulation material PA66
Flammability rating conform to UL94 V0
Rated voltage V 400V
Rated current A 16A
Wire range mm² 0.2~2.5
UL Rated voltage V 300V
UL Rated current A 15A
UL Wire range AWG 24~14
