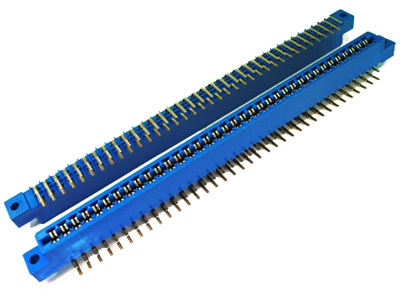

KLS1-903R 3.96mm Pitch Edge Card Connector Right Angle
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-903R
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
3.96mm Pitch Edge Card Connector Right Angle KLS1-903R
Order Information
KLS1-903R-XX-L
903R-Right Angle Pin type
XX-No,of 10~100 pin
L-Blue B-Black
Material:
Housing:PBT+30% Glass fiber (UL94V-0)
Contacts: Brass or Phosphor Bronze
Plating:Gold 1u" over nickel 50u"
Electrical Characteristics:
Current Rating:3.0A
Insulator Resistance:5000MΩ Min.
Contact Resistance:0.02Ω Max.
Dielectric withstand voltage:500V AC
Operating Temperature:-45ºC~+105ºC
