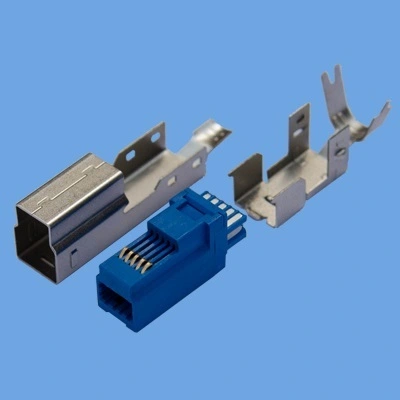

    KLS1-148 B Male Solder USB 3.0 connector

    Material
    Housing: 30% Glass filled PBT UL94V-0
    Contacts: copper
    Pin Plated: Gold 3u" over 50u" nickel
    Shell: Spcc,Nickel plated

    Electrical
    Contact Current Rating:     1.8 A
    Withstanding Voltage:500VAC(Rms)
    Contact Resistance: 30mΩ Max
    Insulation Resistance:1000MΩ Min

    Mechanical
    Operating Temperature:-30°C TO +80°C.
