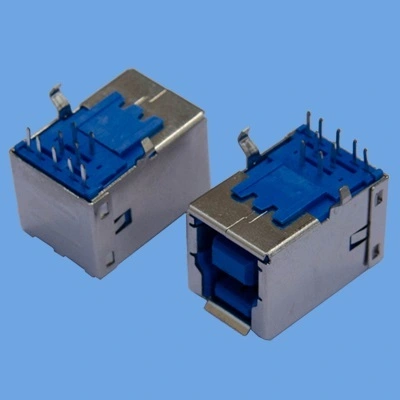

KLS1-148F Dip 90 B Female USB 3.0 Connector 1
KLS1-148F Dip 90 B Female USB 3.0 Connector 1

KLS1-148F Dip 90 B Female USB 3.0 Connector

    oops...!

    no product data.

    Go to homepage


    KLS1-148F Dip 90 B Female USB 3.0 Connector

    Material

    Housing: Thermoplastic, Glass Fiber Filled,UL94-HB

    Cover: Thermoplastic, Glass Fiber Filled, UL94V-0

    USB2.0 Contact: Copper Alloy,Gold.

    USB3.0 Contact: Copper Alloy,Gold.

    Shell: Brass/Spcc,Nickel(Ni) T=0.30MM


    Electrical

    Contact Current Rating:1.5 A For

    Pin1&Pin4 0.25 A Other Contacts.

    Withstanding Voltage:100vac(Rms)

    Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4

                                  50mΩ Max(Initial) For Other Contacts

                                  10mΩ Max Change For Post Test Llcr

    Insulation Resistance:1000mΩ Min


    Mechanical

    Operating Temperature:-40°C TO +85°C.

    Mating Force: 35N MAX

    Unmating Force: 10N MIN.
