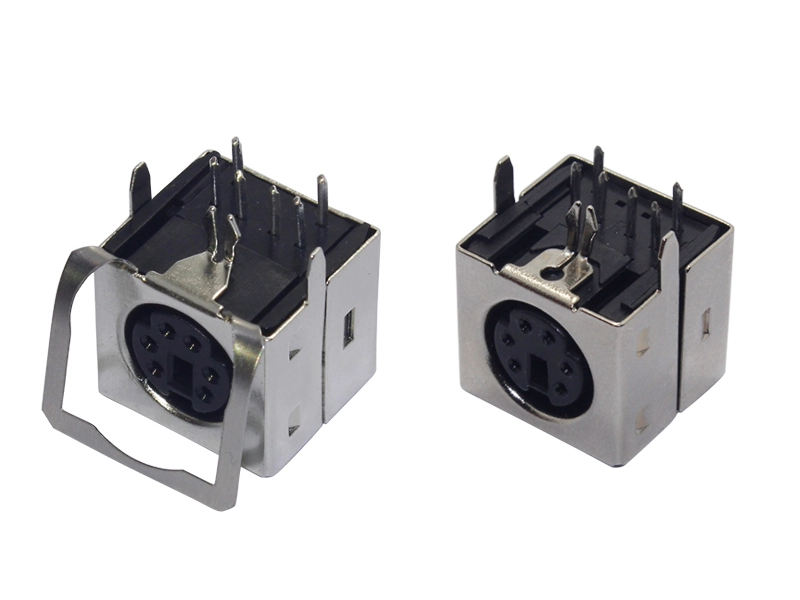

KLS1-155   Mini Din Audio Jack 1

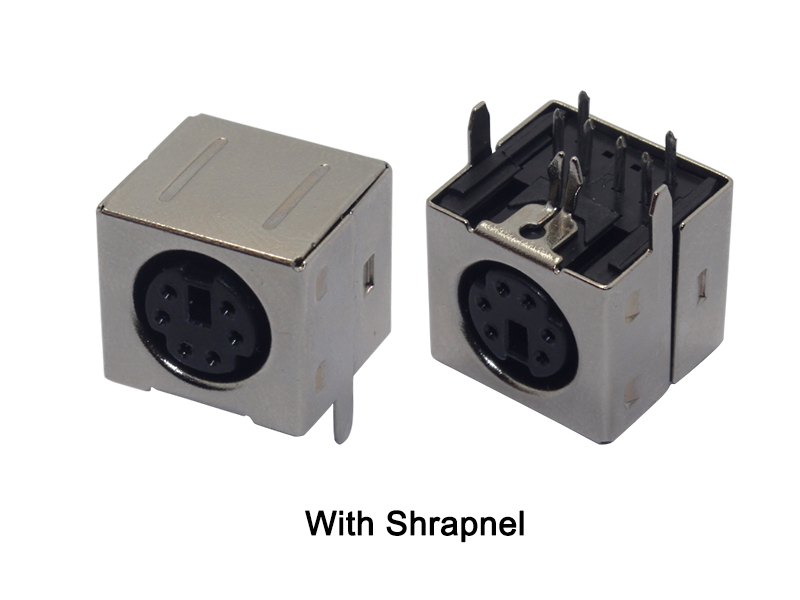

KLS1-155   Mini Din Audio Jack 2

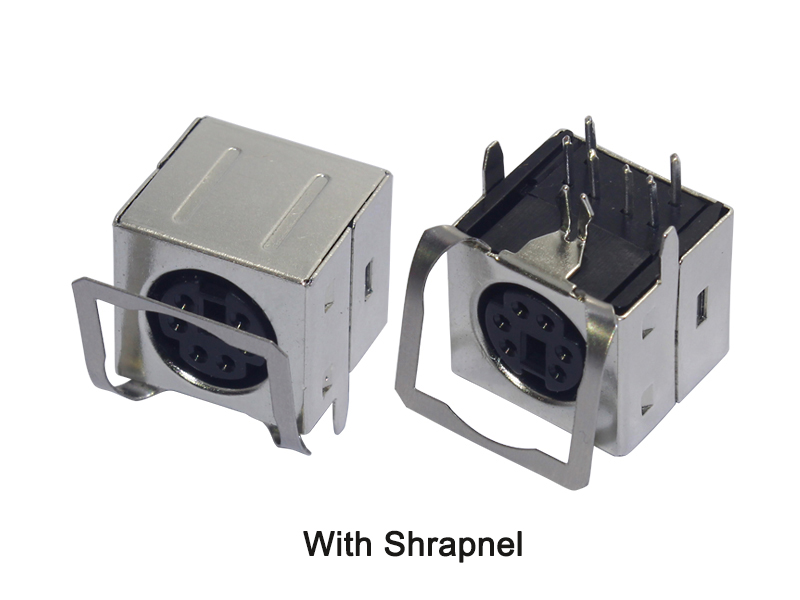

KLS1-155   Mini Din Audio Jack 3
KLS1-155   Mini Din Audio Jack 1
KLS1-155   Mini Din Audio Jack 2
KLS1-155   Mini Din Audio Jack 3

KLS1-155 Mini Din Audio Jack

    oops...!

    no product data.

    Go to homepage


    KLS1-155   Mini Din Audio Jack

    How to order Example:
    KLS1-155-04-B-0
    04=4 PIN  Or-3 Pin,5 Pin,6 Pin,7 Pin,8 Pin
    B=Black  G=Green  P=Purple
    0=Without Shrapnel 1=With Shrapnel

    MATERAL
    Insulator:PBT UL 94V-0 or PPS
    Shell:Brass,Nickel / Tin Plated or Tin Plated
    Contact:Phosphor Bronze,Gold /Tin plated
    ENVIRONMENTAL
    Operating Temperature:-55 C ~ + 105 C
    ELECTRICAL
    Contact current Rating:1 A 100V AC
    Dielectric Withstanding:250V AC 1 min.
    Insulation Resistance:5000M OHM min AT 500V DC
    CONTACT RESISTANCE:30m ohm Max.
