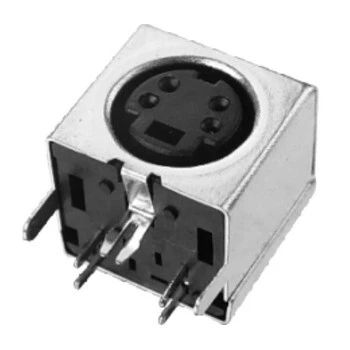

KLS1-1551 Mini Din Audio Jack
How to order
Example:
KLS1-1551-04-B
04=4 PIN Or-3
Pin,5 Pin,6 Pin,7 Pin,8 Pin
B=Black
MATERAL
Insulator:PBT
UL 94V-0 or PPS
Shell:Brass,Nickel
/ Tin Plated or Tin Plated
Contact:Phosphor
Bronze,Gold /Tin plated
ENVIRONMENTAL
Operating
Temperature:-55 C ~ + 105 C
ELECTRICAL
Contact
current Rating:1 A 100V AC
Dielectric
Withstanding:250V AC 1 min.
Insulation
Resistance:5000M OHM min AT 500V DC
CONTACT
RESISTANCE:30m ohm Max.
