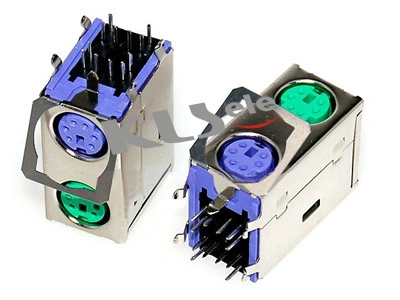

KLS1-155A Mini Din Audio Jack
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-155A
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-155A Mini Din Audio Jack
How to order Example:
KLS1-155A-04/04-GP-0
04/04=4 Pin/4pin
,06/06=6 Pin/6Ppin, 08/08=8 Pin/8Ppin
GP=Green,Purple
0=Without
Shrapnel 1=With Shrapnel
MATERAL
Insulator:PBT
UL 94V-0 or PPS
Shell:Brass,Nickel / Tin Plated or Tin
Plated
Contact:Phosphor Bronze,Gold /Tin plated
ENVIRONMENTAL
Operating
Temperature:-55 C ~ + 105 C
ELECTRICAL
Contact current
Rating:1 A 100V AC
Dielectric Withstanding:250V AC 1 min.
Insulation
Resistance:5000M OHM min AT 500V DC
CONTACT RESISTANCE:30m ohm Max.
