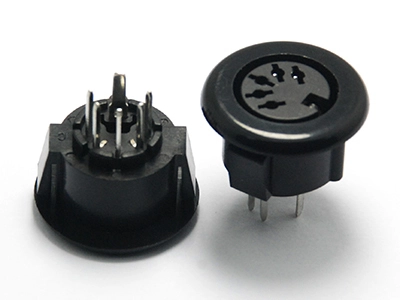

KLS1-159A & KLS1-159B Din Audio Socket
5.0
Place of Origin:
China
Payment:
L/C, D/A, T/T
MOQ:
1000 PCS
Model:
KLS1-159A & KLS1-159B
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-159A & KLS1-159B Din Audio Socket
How to order Example:
KLS1-159A-5-B
Type:159A or 159B
5-5 Pin
Or-3 Pin,4 Pin,6 Pin,7 Pin,8 Pin
B-Black
MATERAL
Insulator:PBT UL 94V-0
Shell:Brass,Nickel / Tin Plated or Tin Plated
Contact:Phosphor
Bronze,Gold /Tin plated
ENVIRONMENTAL
Operating Temperature:-55 C ~ + 105
C
ELECTRICAL
Contact current Rating:1 A 100V
AC
Dielectric Withstanding:250V AC 1 min.
Insulation Resistance:5000M OHM
min AT 500V DC
CONTACT RESISTANCE:30m ohm Max.
