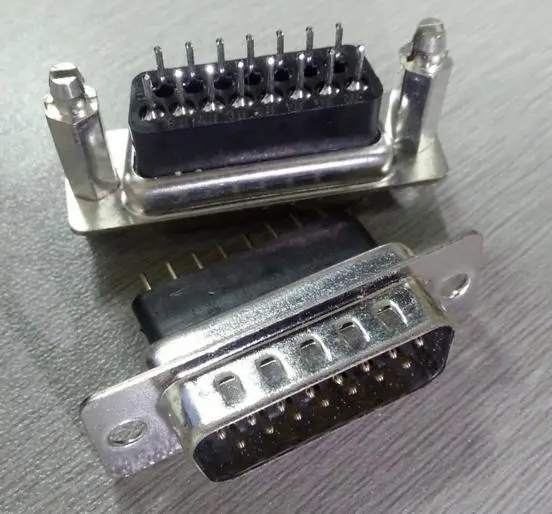

KLS1-171 / KLS1-171B / KLS1-171C 2 Row PCB Dip Type D-Sub Connector 9 15 25 37 pin male female
Order Information
KLS1-171-XX-M-L-W-W
171A-2 Row type
XX-No.of pin
M-Male F-Female
L-Blue B-Black
W-With Nuts N-Without Nuts
W-With Fixed post N-Without Fixed post
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Shell: Steel, 100u" Tin Over 50u" min Nickel
Clinch Nut: Brass, 100u" min Nickel Plated
Screwlock: Brass, 100u" min Nickel Plated
Electrical Characteristics:
Current Rating: 3 AMP / 5AMP
Insulator Resistance: 5000M ohms min. at DC 500V
Contact Resistance: 20m ohms max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
