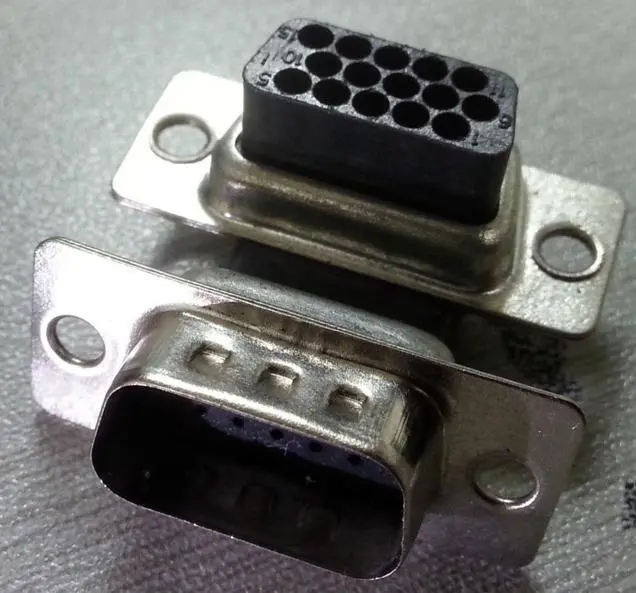

KLS1-176B 3 Row Crimp Type D-Sub Connector 15 26 44 62 pin male female
Order Information
KLS1-171B-XX-M-B
171B-3 Row type
XX-No.of pin
M-Male F-Female
L-Blue B-Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Shell: Steel, 100u" Tin Over 50u" min Nickel
Clinch Nut: Brass, 100u" min Nickel Plated
Screwlock: Brass, 100u" min Nickel Plated
Electrical Characteristics:
Current Rating: 3 AMP / 5AMP
Insulator Resistance: 5000M ohms min. at DC 500V
Contact Resistance: 20m ohms max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
