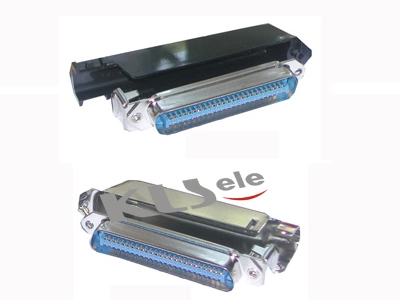

    KLS1-178-57A / KLS1-178-57B Centronic Connector With solder type

    Centronic Connector With Solder Type

    Order Information
    KLS1-178-57A-XX-M-L
    57A-PLASTIC MATERIAL   57B-METAL MATERIAL
    XX-No.of pin   (36pin  and 50pin)
    M-Male    F-Female
    L-Blue    B-Black

    MATERIALS:
    Contacts: Brass or Phosphor Bronze
    Housing: PBT (UL 94V-0)
    Shell: Cold Roller Steel
    ELECTRICAL CHARACTERISTICS:
    Current rating: 3AMP or 5 AMP
    Withstanding Voltage: AC 1200V r.m.s
    Insulation Resistance: 1000 Megohms Minimum at DC 500V
    Contact Resistance: 30 Milliohms Maximum
    Operation Temperature: -55C° ~ +105C°
    Applicable wire: # 24AWG ~ # 28AWG
