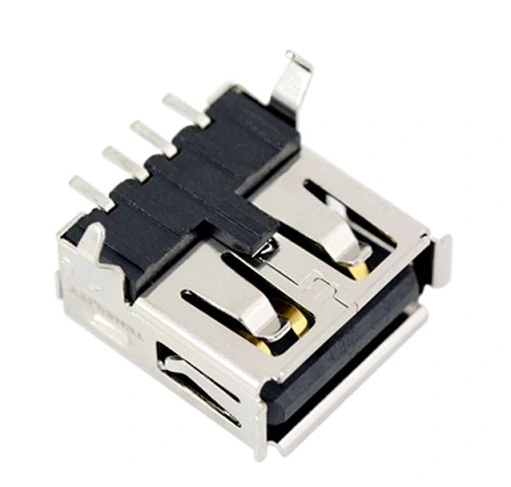

    KLS1-181C A Female SMD USB Connector

    Material
    Housing:Hing Temperature Thermoplastic,
                  UL94V-0 LCP,Black/White.
    Contact:Copper Alloy C2680.
    Shell:Copper Alloy C2680/SPCC.

    Finish:
    Contact:Plated Gold In Mating Area;Tin On Solder Tails.
    Shell:Nickel Plating.

    Electrical:
    Current Rating:1.5A/Contact Terminal.
    Voltage Rating:30V DC
    Contact Resistance:30mΩ Max.
    Dielectric Withstanding Voltage:500 V AC AT Sea Level.
    Insulation Resistance:1000MΩ Min.
    Connector Mate and Unmated Force
    Mate Force:3.75kgf Max.
    Unmated Force:1.02kgf Min.
    Terminal Retenion:1.2kgf Min.
