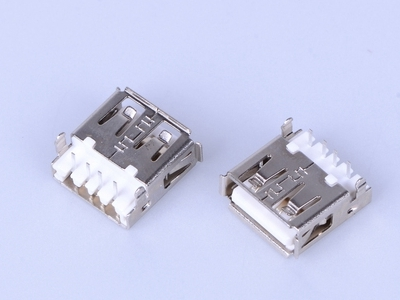

    KLS1-1828 MID MOUNT 2.0mm A Female Dip 90 USB Connector

    Material

    Housing:Thermoplastic plastics.
    Terminals:Copper Alloy.Gold plated in contact area;
     Tin plated in termination Nickel plated overall.
    Shell:Copper Alloy.Nickel plated overall.

    Electrical:
    Rating Current:1.5Ampere.
    Rating Voltage:30V Max.
    Contact Resistance:30mΩ Mill.
    Insulation Resistance:1000MΩ Min.
    Mechanical Characteristics:
    Connector Mating force:35N Max (3.57Kgf)
    Connector Unmating force:10N Min (1.02Kgf)
    Durability:1500 Cycles.
    Environment Characteristics:
    Operating temperature:-0 °C to +50 °C
