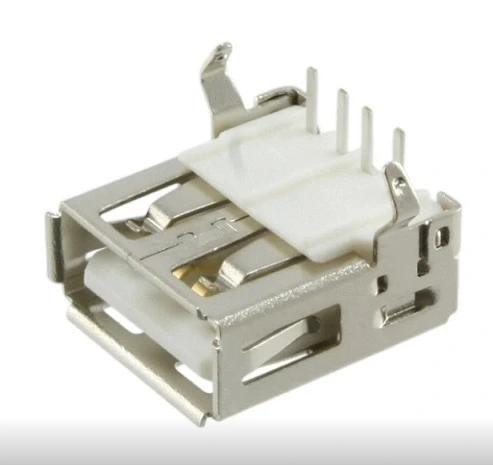

    KLS1-18R1 A Female Dip 90 USB Connector

    Material:

    Housing:PBT+30%GF,UL94V-0.
    Shell:Brass C2680 T=0.30mm ,Plated Nickel
    Terminal:Phosphor Bronze  C5191 T=0.25mm,
                 Plated Gold/Tin.
    Electrical:
    Voltage Current Rating:1.5AMP,30V AC.
    Insulator Resistance:1000MΩ Min.
    Contact Resistance:30mΩ Max.
    Withstanding Voltage:500V AC

    Mechanical
    Operating Temperature:-55°C TO +85°C.
    Mating Force:3.5kgf MAX.
    Unmating Force:1.0kgf MIN.
