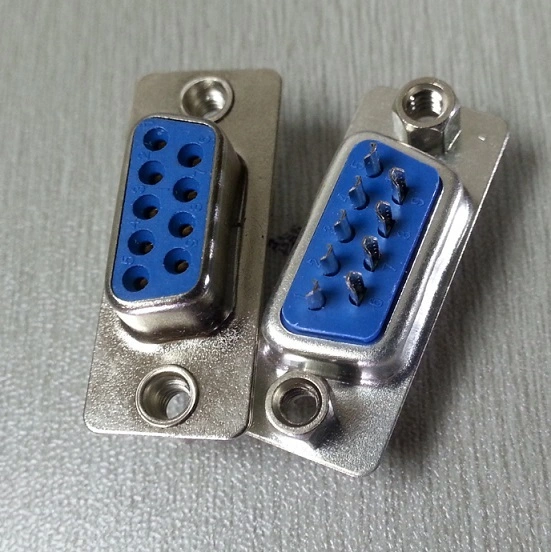

KLS1-213A & KLS1-213D DB 2 Row Simple Solder Type D-Sub Connector 9 15 25 37 50 pin male female,Riveting
Order Information
KLS1-213A-XX-M-L
XX-No.of 09~50pin
M-Male F-Female
L-Blue B-Black W-White
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass , Gold Plating on Contact Arer, Tin on Solder Tail.
Shell: Steel, Front Shell Nickel Plating, Back Shell Tin Plating
Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
