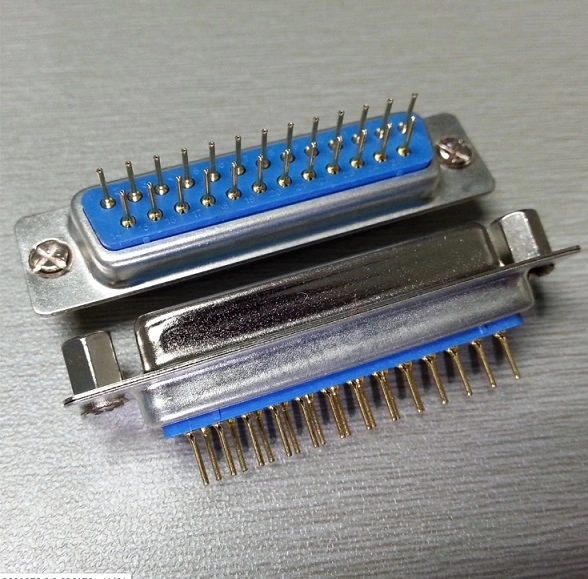

KLS1-221A & KLS1-221B & KLS1-221C & KLS1-221D DP Riveting Type 2 Row PCB Dip Type D-Sub Connector 9 15 25 37 pin male female
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-221C
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-221C DP With Post Type 2 Row PCB Dip Type D-Sub Connector 9 15 25 37 pin male female
Order Information
KLS1-221B-XX-M-L-6.0
XX-No.of 09~50pin
M-Male F-Female
L-Blue B-Black W-White
A Size:6.0mm or other size
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Shell: Steel, 100u" Tin Over 50u" min Nickel
Clinch Nut: Brass, 100u" min Nickel Plated
Screwlock: Brass, 100u" min Nickel Plated
Electrical Characteristics:
Current Rating: 3 AMP or 5AMP
Insulator Resistance: 5000M ohms min. at DC 500V
Contact Resistance: 20m ohms max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
