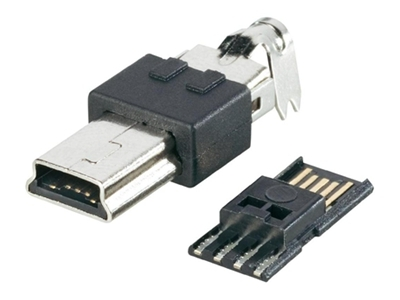

    KLS1-232 5P B type Mini USB connector plug wire solder

    Material:
    Insulator: PBT Rated UL94V 0
    Contacts: Brass
    Shell: Cold Rolled Steel
    Pin Plated: Gold 3u" over 50u" nickel

    Electrical:
    Current Rating: 1.0 Amps Max.
    Contact Resistance: 30 mΩ Max
    Insulation Resistance: 1000 MΩ Min
    Dielectric Withstanding Voltage:500 VAC / Minute

    Mechanical:
    Mating force: 3.0Kg Max. (29 4N)
    Unmating force: 0 5Kg Min (4 9N)
    Contact Retention: 0.3 Kg / Pin Min. (2.94N)
    Operating Temperature: -55ºC~ +105ºC
