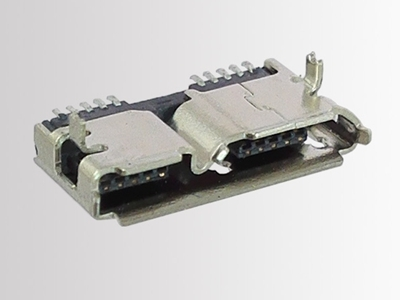

    KLS1-234-10F3 MICROUSB3.0Female,10PSMD


    Material:

    Housing:LCP,UL94V-0
    Contact:Copper Alloy.
                Gold Plating  AT Contact Area
               Tin Plating on the Tails.
    Shell:SUS304.Tin Plated

    Electrical:
    Contact Current Rating: 1.0A Max.
    Contact Resistance: 30mΩ Max.
    Insulation Resistance: 100MΩ Min.
    Dielectric Withstanding Voltage:
                               100V AC R.M.S.
    Operating Temperature:-30°C ~ +80°C.

    Mechanical Characteristics:
    Mating Force: 3.5kgf Max.
    Unmating Force: 1.0kgf Min.
    Durability:5000 Cycles
