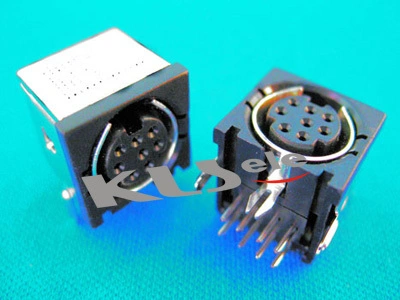

KLS1-285L Mini Din Audio Jack
How to order Example:
KLS1-285L-4-B
285L=With Shielded
4=4
PIN Or-3 Pin,5 Pin,6 Pin,7 Pin,8 Pin
B-Black G-Green
MATERAL
Insulator:PBT UL 94V-0 or PPS
Shell:Brass,Nickel / Tin Plated
or Tin Plated
Contact:Phosphor Bronze,Gold /Tin
plated
ENVIRONMENTAL
Operating Temperature:-55 C ~ + 105
C
ELECTRICAL
Contact current Rating:1 Amp
Dielectric Withstanding:AC
1000V / min. R.M.S
Insulation Resistance:5000M OHM min AT 500V DC
CONTACT
RESISTANCE:30m ohm Max.
