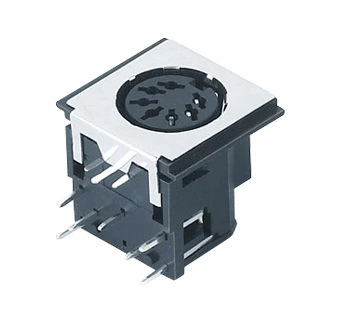

KLS1-291A-5.0 & KLS1-291L-5.0 Din Audio Socket

    oops...!

    no product data.

    Go to homepage


    KLS1-291A-5.0 & KLS1-291L-5.0   Din Audio Socket

    How to order Example:
    KLS1-291L-5.0-3-B
    291A=Without Phosphor Bronze Cover   291L=With steel Phosphor Bronze Cover
    Pitch:5.0mm
    3-3PIN  Or-4 Pin,5 Pin,6 Pin,7 Pin,8 Pin
    B=Black


    MATERAL
    Insulator:PBT UL 94V-0 or PPS
    Shell:Brass,Nickel / Tin Plated or Tin Plated
    Contact:Phosphor Bronze,Gold /Tin plated
    ENVIRONMENTAL
    Operating Temperature:-55 C ~ + 105 C
    ELECTRICAL
    Contact current Rating:1 A 100V AC
    Dielectric Withstanding:250V AC 1 min.
    Insulation Resistance:5000M OHM min AT 500V DC
    CONTACT RESISTANCE:30m ohm Max.
