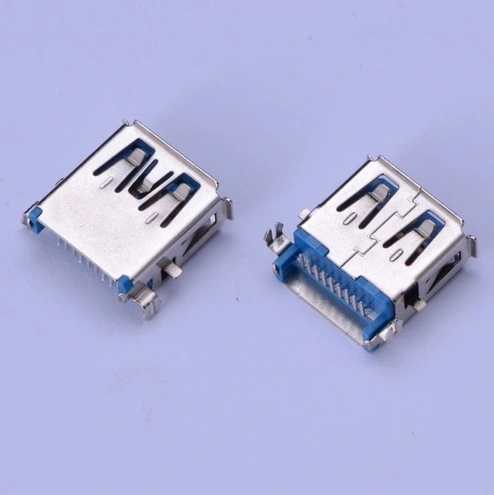

KLS1-3025 dip 90 MID mount H3.5mm A Female USB 3.0 connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-3025
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-3025 dip 90 MID mount H3.5mm A Female USB 3.0 connector
Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
USB2.0 Contact: Copper Alloy,Gold.
USB3.0 Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM
Electrical
Contact Current Rating:1.5 A For
Pin1&Pin4 0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
10mΩ Max Change For Post Test Llcr
Insulation Resistance:1000mΩ Min
Mechanical
Operating Temperature:-40°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
