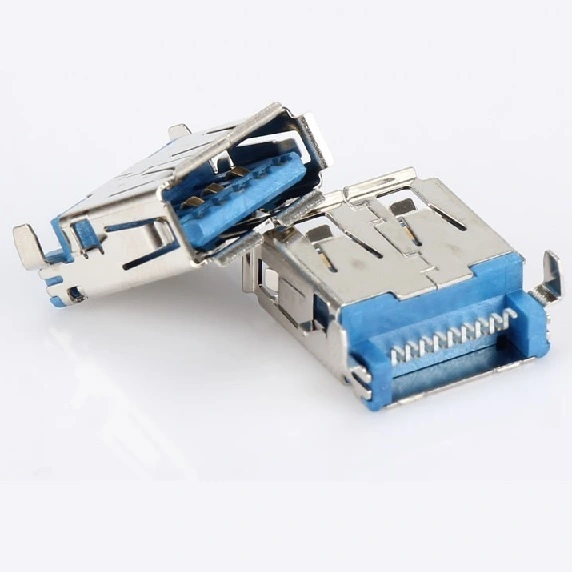

    KLS1-3010 SMD Mid mount A Female 9P USB 3.0 Connectors

    Material

    Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
    Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
    Contact: Copper Alloy,Gold.
    Shell: Brass/Spcc,Nickel(Ni) T=0.30MM
    Electrical
    Contact Current Rating:     1.5 A For Pin1&Pin4
                                               0.25 A Other Contacts.
    Withstanding Voltage:100vac(Rms)
    Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
                                     50mΩ Max(Initial) For Other Contacts
    Insulation Resistance:1000MΩ Min
