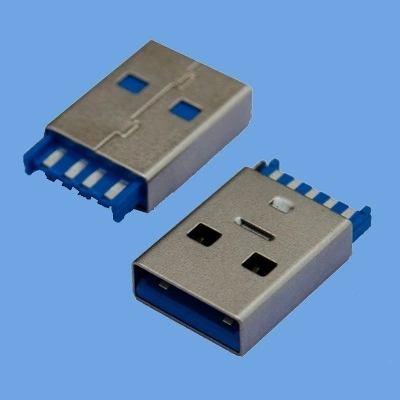

    KLS1-312  A Male Solder USB 3.0 connector

    Material
    Insulator: PBT,UL94V-0
    Contact: Copper Alloy T=0.2mm,Gold plated
    Shell: Spcc,T=0.30MM,Nickel(Ni) plated

    Electrical
    Contact Current Rating:1.5 A For Pin1&Pin4
                                          0.25 A Other Contacts.
    Withstanding Voltage:500VAC(R.M.S.)
    Contact Resistance: 30mΩ Max
    Insulation Resistance:1000MΩ Min

    Mechanical
    Operating Temperature:-40°C TO +85°C.
    Mating Force: 35N MAX
    Unmating Force: 10N MIN.
