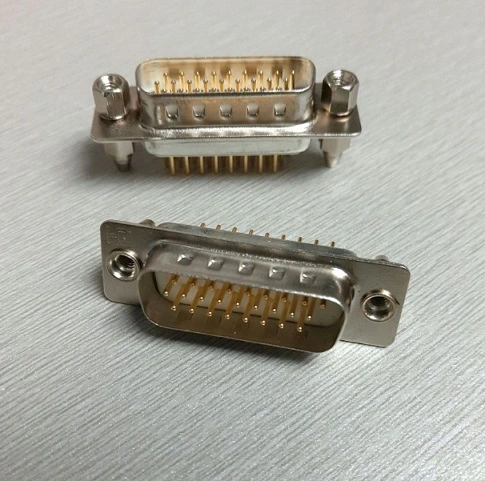

KLS1-321A & KLS1-321B & KLS1-321C & KLS1-321D HDP 3 Row PCB Dip Type D-Sub Connector 15 26 44 62 78 pin male female
Order Information
KLS1-321A-XX-M-L
XX-No.of 15~78pin
M-Male F-Female
L-Blue B-Black W-White
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating or
Gold Plating on Contact Arer,
Tin on Solder Tail.
Shell: Steel, Nickel Plating
Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -40°C~+105°C
