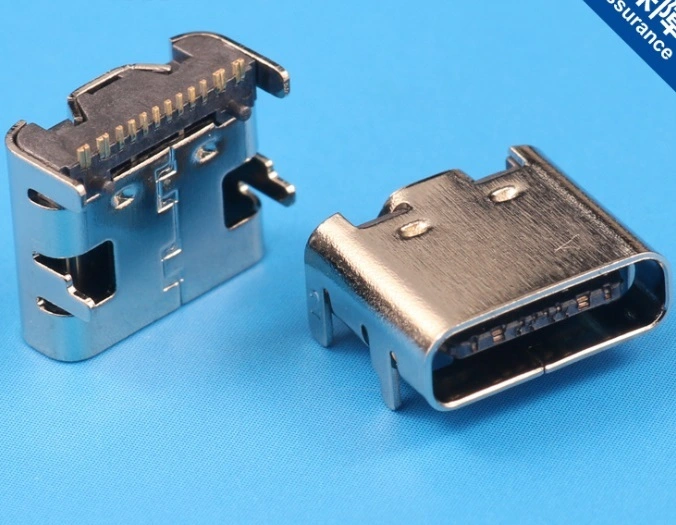

    KLS1-5409 16P SMD L=6.5mm USB 3.1 type C connector female socket

    Electrical

    Current Rating: 3A Max
    Voltage: 100 VAC
    Contact Resistance: 40mΩ Max
    Insulation Resistance: 100MΩ  Min.
    Mechanical
    Operating Temperature:-30°C TO +85°C.
    Insertion Force : 5N~20N
    Unmating Force: 8N~20N
    Durability:10000 Cycles
