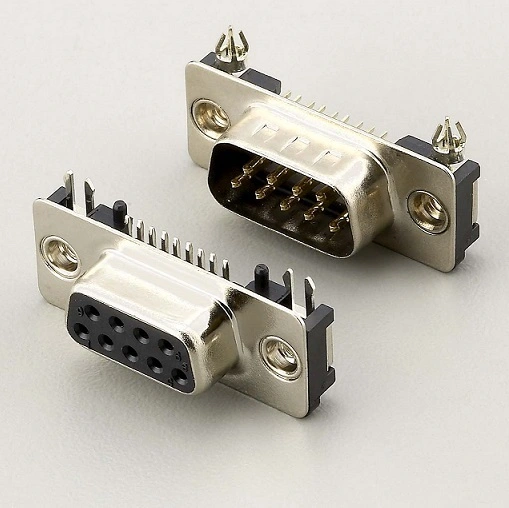

KLS1-615-09 Slim Female Type D-SUB Connector
Order Information
KLS1-615-09-F-B-N
09-No.of 09 pin
M-Male F-Female
B-Black L-Blue
W-With Nuts Type N-Without Nuts Type
Material:
Contacts:Brass,Gold Flash.
Insulator:PBT UL 94V-0 Rated
Shell:Cold Roller Steel,Nickel Plated.
Electrical Characteristics:
Contact Current Rating:3 Amperes.
Dielectric Withstanding Voltage: AC 1000/60sec.r.m.s
Insulation Resistance:5000 Medohms Minimum.at DC 500V.
Contact Resistance:25 Milliohms Maximum.
Operating Temperature: -55ºC~+105ºC
