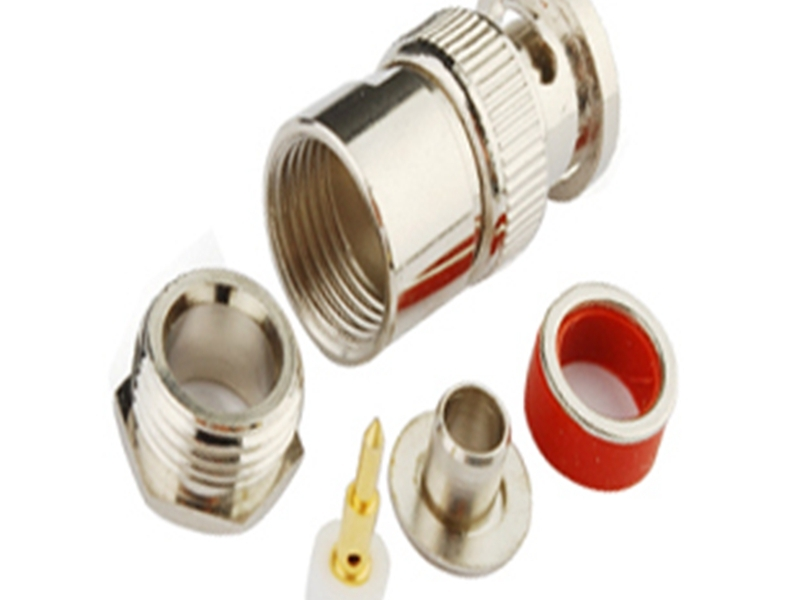

KLS1-BNC171 BNC connector for LMR300
1- Electrical
Impedance: 50 Ω
Frequency Range:0~4 GHz Max.
Voltage Rating: 500 volts
Withstand Voltage:1500V
Insulation Resistance:5000 MΩ
V.S.W.R:<1.22
Contact resistance:
Centre contact: 1.5 mΩ Max.
Outer contact: 0.2 mΩ Max.
2- Durability(mating):500(cycles)
3- Mechanical
Mating 2-stud bayonet lock
Cable Type:LMR300
