KLS1-DC-014 DC Power Video Jack Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, T/T
MOQ:
1000 PCS
Model:
KLS1-DC-014
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

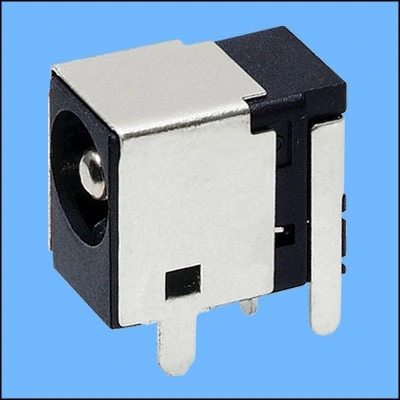

KLS1-DC-014 DC Power Video Jack Connector
Technical parameters:
Contact
resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V
(50Hz) / 1minute
Rated Load: DC 16V 2.0A Max
Actuating Force:
3~20N
Life: 5000 times
Operating Temperature: -30ºC ~ 70ºC
Material:
Centre Pin
Coppep
Terminal 1 : Brass
Terminal 2 : Copper alloy
Terminal 3 :
Brass
Housing : PBT
Shield : Brass
