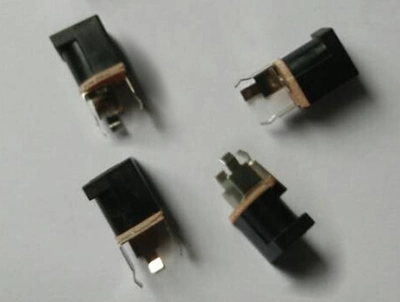

    KLS1-DC-023    DC Power Audio Socket

    Material:
    1:Housing:PBT/PA66/ABS
    2:Flat piece:H62 Brass,Cu-Zn-Plating
    3:Spring:H65Mn Steel,Cu-Sn-Plating
    4:Foot:H59 Brass,Ni-Plating
    5:Contact:Brass,Cu-Sn-Plating
    6:Cover:PF
    Technical parameters:
    Rated Load: DC 30V 1A
    Contact resistance: 0.03Ω, max
    Insulation resistance: 100MΩ, min
    Withstand voltage:500VAC
    Insertion and extraction force: 3~20N
    Life: 5000 times
    Operating Temperature:-30oC ~ 70oC
