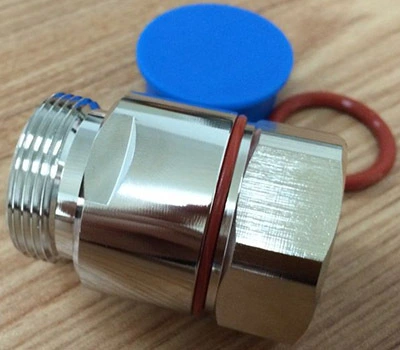

    KLS1-DINM-78L/KLS1-DINF-78L RF Coaxial Connectors

    Technical parameters:

    Impedance: 50Ω
    Frequency Range:DC~3GHz (50Ω);
    Working Voltage:2700V max
    Withstand Voltage:4000V rms
    Contact resistance:Center Contac:≤0.4 mΩ ;Outer Contact:≤1. 5 mΩ
    Insulation resistance:≥ 10000 MΩ
    VSWR  Straight:≤ 1.15(0.8-2.5GHZ)
    Durability(mating):≥500(cycles)
    Temp.range:-55°C~+155°C
    Vibration:100m/s2 (10~500Hz)

    MATERIAL & PLATING
    Shell:Brass,Nickel-plating
    Contact pin:Tin brass,silver-plating
    Insulator:PTFE
    O-ring sealing:6146   silastic
