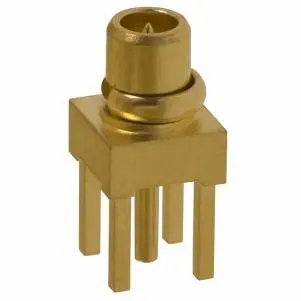

    KLS1-MMCX007 PCB Mount MMCX Connector (Plug,Male,50Ω)

    Electrical Specifications
    Impedance:50 Ω
    Frequency Range:DC - 6 GHz
    VSWR:
    1.15 max. @ DC - 4 GHz
    1.40 max. @ 4 - 6 GHz
    RF-Leakage:
    60 dB minimum @ 1 GHz (flexible cable)
    70 dB minimum @ 1 GHz (semi-rigid cable)
    Voltage Rating (at sea level)  :≤ 170 Vrms
    Contact Resistance:
    center contact: ≤ 10 mΩ
    outer contact: ≤ 5 mΩ
    Insulation Resistance:1,000 MΩ minimum
    Dielectric Withstanding Voltage:500 Vrms (at sea level)

    Mechanical
    Mating:Snap-on coupling
    Contact Captivation:2.3 lbs
    Engagement Force:≤ 3.4 lbs (15N)
    Disengagement Force:≥ 1.4 lbs (6N)
    Durability (matings):500 cycles Min.
    Temperature Range:-55°C to +155°C

    Material
    Body and Outer Contacts :Brass, nickel or gold plated
    Male Contact :Brass, gold plated
    Female Contact :Beryllium copper or phosphor bronze, gold plated
    Crimp Ferrule:Copper or brass, nickel plated
    Insulator:LCP, PTFE or PFA
