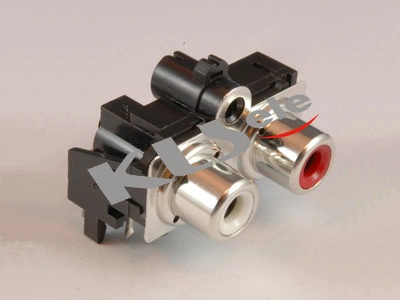

KLS1-RCA-202 RCA Audio Jack Connector
Electrical Specification:
Contact resistance : 30mΩ
Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC
500V(50Hz) 1min
Operating Temperature :
-25ºC~+85ºC
Materials:
Plastic : PBT UL94V~0
Sealed
Plate : Brass
Terminal : Brass
Outer Contact : Brass
Washer : PBT
UL94V~0
Cover : ABS UL94V~0
Housing : PBT UL94V~0
