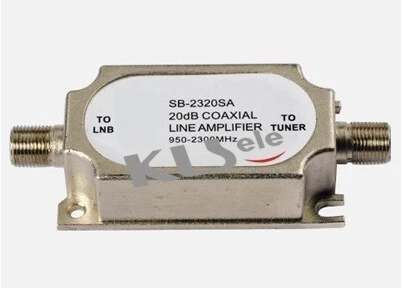

    KLS1-SB-2320 Satellite Amplifier

    Features

    1.Zinc die-cast housing with nickel plated

    2.Adopting high frequency amplification components and low noise circuit design
    3.Design for IN-LINE boosting SAT I.F. signal
    4.Max. passing current: 0.5A, DC 24V
    5.75ohm, British system F-type connector
    6.Package: 300PCS/CTN
    Key Parameters
                         Type
    Item
    SB-2320SA
    SB-2320B
    Frequency range (MHz)
    950-2400
    950-2400
    Nominal gain (dB)
    20±2
    17±1
    Flatness in band (dB)
    ±0.75
    ±0.75
    Max. output voltage (dBμV)
    100
    100
    Carrier to intermodulation ratio (dB)
    3.5
    53
    Noise factor (dB)
    3.5
    3.5
    Return loss (dB)
    10
    10
    Power supply (V)
    DC 13-18
    DC 13-18
    Power consumption (W)
    1
    1
    Dimension (mm)
    80×30×20
    80×30×20
