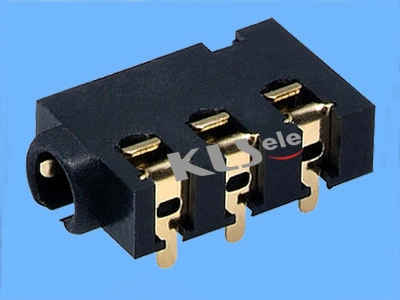

KLS1-SSJ2.5-004 2.5mm Stereo Audio Jack For PCB Mount
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-SSJ2.5-004
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-SSJ2.5-004 2.5mm Stereo Audio Jack For PCB Mount
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5
A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V
(50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating
Temperature:-30ºC~+70ºC
Material:
Terminal 1 : Copper
Alloy
Terminal 2 : Copper Alloy
Terminal 3 : Copper Alloy
Terminal 4 : Copper
Alloy
Housing : Pa66
