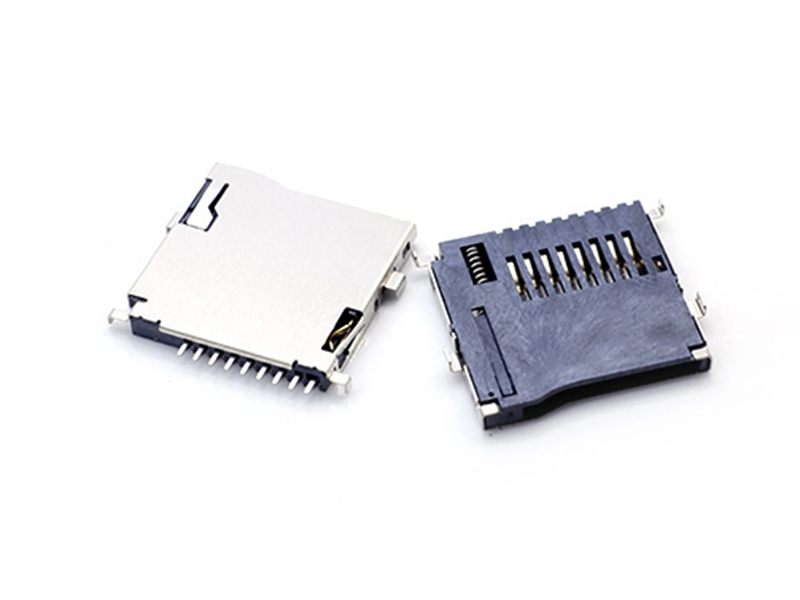

KLS1-TF-003E Push-Push H1.0mm Mid Dip Mount With CD Pin Micro SD Card Connector
Material:
Housing Material: LCP UL94V-0
Contact Material: Tin-Bronze
Package: Tape and Reel Package
Electrical Characteristics:
Voltage rating: 30V
Current Rating: 1.0A
Withstand voltage: 200V AC/1Minute
Insulation resistance: ≥1000ΜΩ
Contact resistance: ≤100MΩ
Life: >10000 Cycles
Operating Temperature: -45ºC~+105ºC
