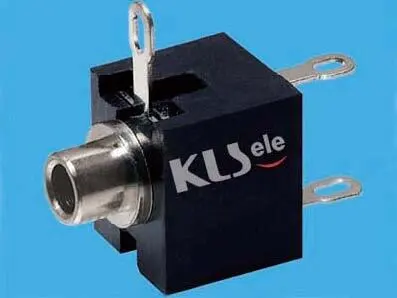

KLS1-TG2.5-001B 2.5mm Stereo Audio Jack For PCB Mount
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-TG2.5-001B
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-TG2.5-001B 2.5mm Stereo Audio Jack For PCB Mount
Technical parameters:
Rated
voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation
resistance: 100MΩ, min
Pressure: AC500V (50Hz) /
1minute
Insertion Force :2-20 N
Life: 50000 times
Operating
Temperature:-30ºC~+70ºC
Material:
Housing
Material:PBT
Center Pin Material:
Terminal 1 :Brass
Terminal 2 :Copper
Alloy
Terminal 3 :Brass
Bushing
:Brass
