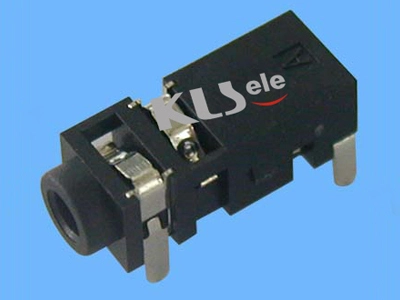

KLS1-TSJ2.1-001A 2.1mm Stereo Audio Jack For PCB Mount
Electrical Specification:
Rating: 0.5A 30V DC
Contact Resistance: 30mΩ
max
Insulation Resistance: 100mΩ min at 500V
DC
Dielectric Strength (V): AC 500V(50Hz)for 1
min
Life: 5000 Cycles
Temperature:
-30ºC~+70ºC
Insertion and Extraction Force:
3-20N
Material:
Housing Material:PA66
Center Pin
Material:
Terminal 1 : Copper Alloy
Terminal 2 : Copper Alloy
Terminal 3 : Copper
Alloy
Terminal 10 : Brass
