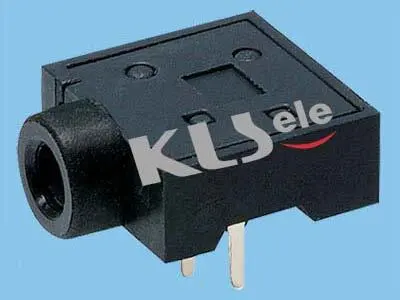

KLS1-TSJ2.5-007B 2.5mm Stereo Audio Jack For PCB Mount
Technical parameters:
Rated voltage: DC 30 V
Rated
current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance:
100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20
N
Life: 50000 times
Operating
Temperature:-30ºC~+70ºC
Material:
Terminal 1 :
Brass
Terminal 2 : Copper Alloy
Terminal 3 : Copper Alloy
Terminal 10 :
Copper Alloy
Terminal 11 : Copper Alloy
Bushing : Pa66
Housing :
Pa66
Coverl : PA66
