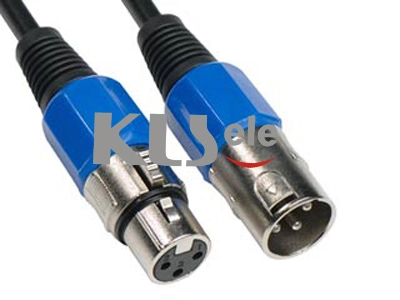

KLS1-XLR-P04 XLR Plug Audio Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-XLR-P04
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-XLR-P04 XLR Plug Audio Connector
Electrical Specification:
Number of contacts: 3
Contact Resistance: ≤ 3
mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test:
> 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16
A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force: ≤ 20
N
Cable O.D. Range: 4.0 mm - 8.0 mm
Temperature Range: -30° C to + 80° C
