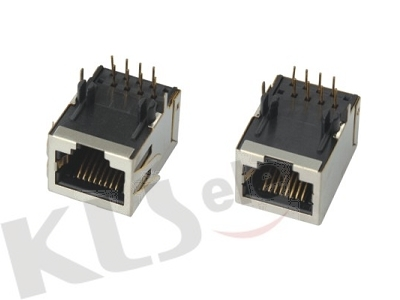

KLS12-117-10P PCB Modular Jack Shield RJ50 (56SERIES)
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS12-117-10P
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS12-117-10P PCB Modular Jack Shield RJ50 (56SERIES)
MATERIAL
1.Housing Material : Glass Filled Plyester UL94V-0 PBT, NYLON
2.Housing Color : Black Gray Ivory White or Others
3.Contact Material : Phosphor Bronze Φ0.46mm
4.PLATING: Gold plating over nickel. Gold plating thickness
1.5u"/ 3u"/ 6u"/ 15u"/ 30u"/ 50u"
5.SHIELD : 0.23 Thickness Brass with nickel plated
ELECTRICAL
ELECTRICAL
1.Current Rating 1.5 Amp
2.Voltage Rating 125 VAC RMS
3.Contact Resistance : 30 Milliohms Max.
4.Insulation Resistance : 500 Megohms Min ＠500 VDC
5.Dielectric Withstanding Voltage 1000VAC RMS 50Hz 1 minute
MECHANICAL
MECHANICAL
1.DURABILITY : 750 CYCLES MIN
2.PCB RETENTION PRE-SOLDER : 1 LB MIN
ENVIRONMENTAL
ENVIRONMENTAL
1.STORAGE :-40ºC~+80ºC
2.OPERATION:-40ºC~+70ºC
