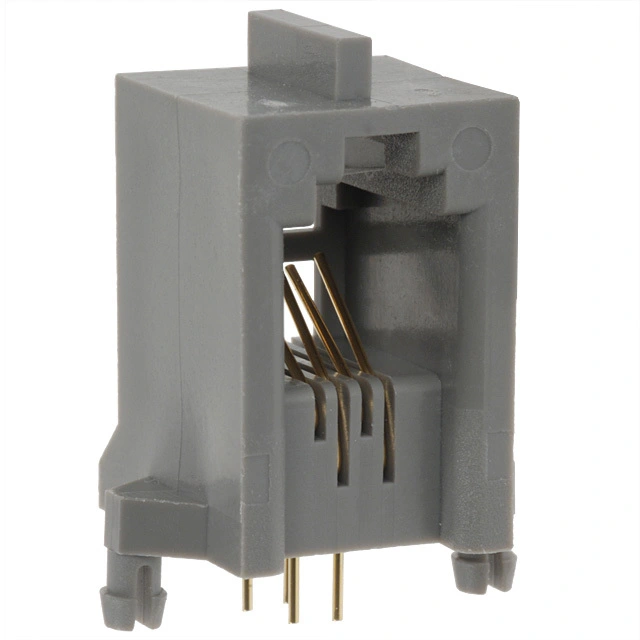

    KLS12-301-4P ModularJack RJ9/RJ10/RJ22

    MATERIAL

    1.Housing Material: Glass Filled Polyester UL94V-0 PBT, NYLON
    2.Housing Color: Black, Gray, Ivory, White or Others
    3.Contact Material: Phosphor Bronze Φ0.46mm
    4.Plating: Gold plating over nickel. Gold plating thickness
    1.5u"/ 3u"/ 6u"/ 15u"/ 30u"/ 50u"

    ELECTRICAL
    1.Current Rating:1.5Amp
    2.Voltage Rating:125VAC
    3.Contact Resistance: 30MΩ Max.
    4.Insulation Resistance: 500MΩ Min @500VDC
    5.Withstanding Voltage:1000VAC RMS 50Hz 1 minute

    MECHANICAL
    1.Durability : 750 cycles Min
    2.PCB Retention pre-solder : 1 LB MIN

    ENVIRONMENTAL
    1.Storage :- 40ºC~+80ºC
    2.Operation:-40ºC~+70ºC
