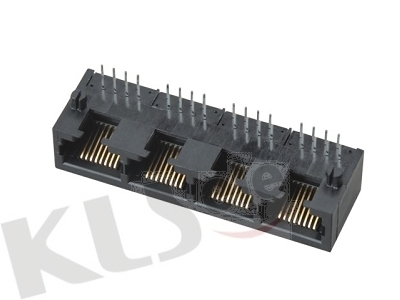

KLS12-312-10P-1X4 PCB Modular Jack RJ50 (56SERIES)
MATERIAL
1.Housing Material : Glass Filled Polyester UL94V-0 PBT, NYLON
2.Housing Color : Black, Gray, Ivory, White or others
3.Contact Material : Phosphor Bronze Φ0 46mm
4.PLATING: Gold plating over nickel. Gold plating thickness
1.5u"/ 3u"/ 6u"/ 15u"/ 30u"/ 50u"
ELECTRICAL
1.Current Rating:1.5Amp
2.Voltage Rating:125VAC
3.Contact Resistance : 30MΩ Max.
4 Insulation Resistance : 500MΩ Min @500VDC
5.Withstanding Voltage 1000VAC RMS 50Hz 1 minute
MECHANICAL
1.Durability : 750 cycles Min
2.PCB Retention pre-solder : 1 LB Min
ENVIRONMENTAL
1.Storage :- 40ºC~+80 ºC
2.Operation:-40ºC~+70ºC
