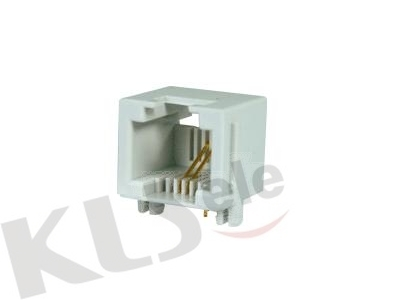

    KLS12-317-6P Mini PCB Modular Jack (53 SERIES)

    MATERIAL
    1.Housing Material: Glass Filled Polyester UL94V-0 PBT, NYLON
    2.Housing Color: Black, Gray, Ivory, White or others
    3.Contact Material: Phosphor Bronze Φ0.46mm
    4.PLATING: Gold plating over nickel. Gold plating thickness
    1.5u "/ 3u" / 6u "/ 15u" / 30u "/ 50u"

    ELECTRICAL
    1.Current Rating: 1.5 Amp
    2.Voltage Rating: 125VAC
    3.Contact Resistance: 30 MΩ Max.
    4.Insulation Resistance: 500 MΩ Min. @ 500VDC
    5.Withstanding Voltage: 1000VAC RMS 50Hz 1 minute

    MECHANICAL
    1.Durability : 750 cycles Min.
    2.PCB Retention pre-solder : 1 LB MIN

    ENVIRONMENTAL
    1.Storage :-40ºC~+80ºC
    2.Operation:-40ºC~+70ºC
