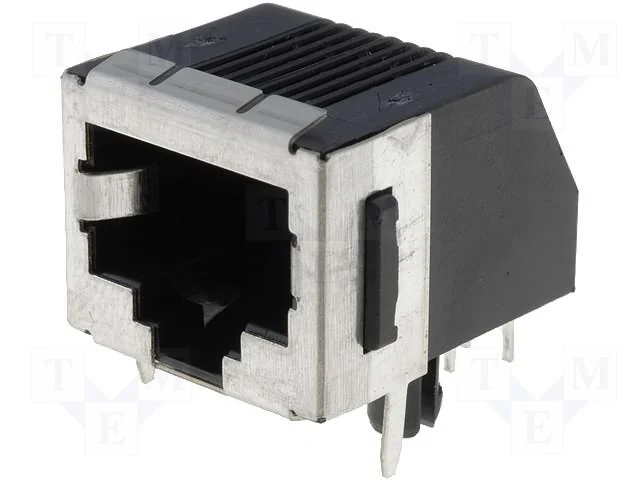

KLS12-319-8P Modular Jack Shield RJ45 (57SERIES)
MATERIAL
1.Housing Material: Glass Filled Polyester UL94V-0 PBT, NYLON
2.Housing Color: Black, Gray, Ivory, White or Others
3.Contact Material: Phosphor Bronze 0.35mm Flat Pin
4.Plating: Gold plating over nickel. Gold plating thickness
1.5u "/ 3u" / 6u "/ 15u" / 30u "/ 50u"
5.Shield : 0.23 Thickness Brass With Nickel Plated
ELECTRICAL
1.Current Rating:1.5Amp
2.Voltage Rating:125VAC
3.Contact Resistance: 30MΩ Max.
4 Insulation Resistance: 500MΩ Min @500VDC
5.Withstanding Voltage:1000VAC RMS 50Hz 1 minute
MECHANICAL
1.Durability : 750 cycles Min
2.PCB Retention pre-solder : 1 LB MIN
ENVIRONMENTAL
1.Storage :- 40ºC~+80 ºC
2.Operation:-40ºC~+70ºC
