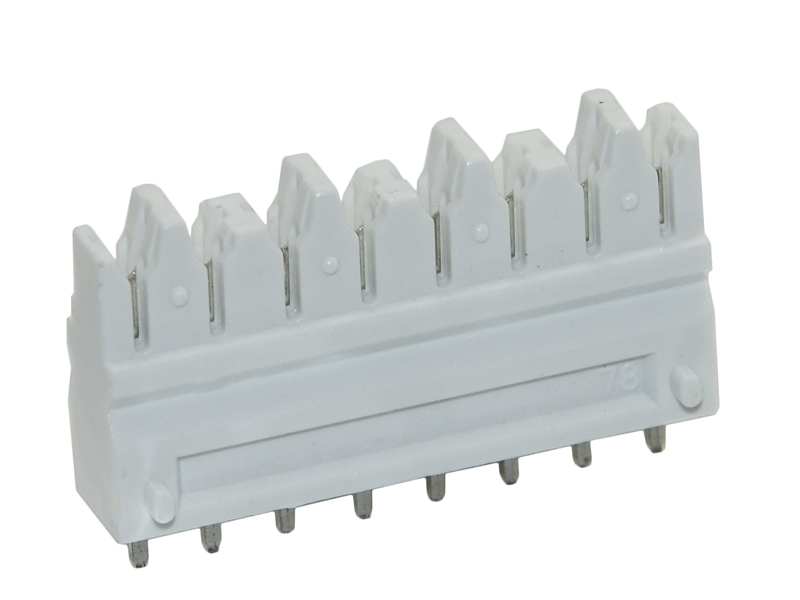

    KLS12-CM110-02 Krone 3.8mm IDC Connector

    Material:
    Housing:   PC UL94V-0
    Contacts: Phosphor Bronze, Tin plated,T=0.8mm
    PCB welding point retention: 1LB Min.
    Life: 750 cycles Min.

    Electrical Characteristics:
    Rated Current: 1.5 AMP
    Rated Voltage: 125V AC
    Contact Resistance: 30mΩ Max.
    Insulator Resistance: 500MΩ Min. at DC 500V
    Withstanding Voltage: AC 1000V/1min
    Operating Temperature: -45°C~+85°C

    Order Information:

    KLS12-CM110-02-XP

    4P-2 Pair IDC Connector      8P- 4 Pair IDC Connector
