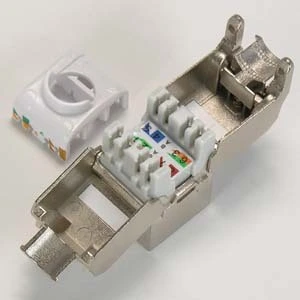

KLS12-DK7004 Cat.6A RJ-45 shielded keystone jack 10 Gigabit Ethernet applications 110IDC
KLS12-DK7004 Cat.6A RJ-45 shielded keystone jack 10 Gigabit Ethernet applications 110IDC
Available in Cat6A, T568A/B wiring, meet or exceed TIA/EIA Cat6A
requirementsShielding protects against EMI/RFI interference
Housing : high temperature thermoplastic
Compact jack design,8 positions and 8 conductors
Contact : phosphor bronze , phosphor bronze with 6 to 50μ"gold plate
Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
Easy to be terminated, low attenuation loss and high return loss
High reliability and superior performance
Available in different colors
CONSTRUCTION
| Description | Parameter |
| Contact resistance(max) | 100mΩ |
| Insulation resistance（min） | 500MΩ |
| Return loss（dB） | 5.8dB |
| Next（dB） | 4.7dB |
| Ps next(dB) | 5.5dB |
Part number | Description | standard color | Inner box | Carton | Carton measurement | Carton weight |
KLS12-DK7004 | Cat6A shielded keystone jacks (180 degree) | Silver | 20PCS | 200PCS | L 53.5cm×W 31.3cm×H 23.4cm | 9.20KG |
