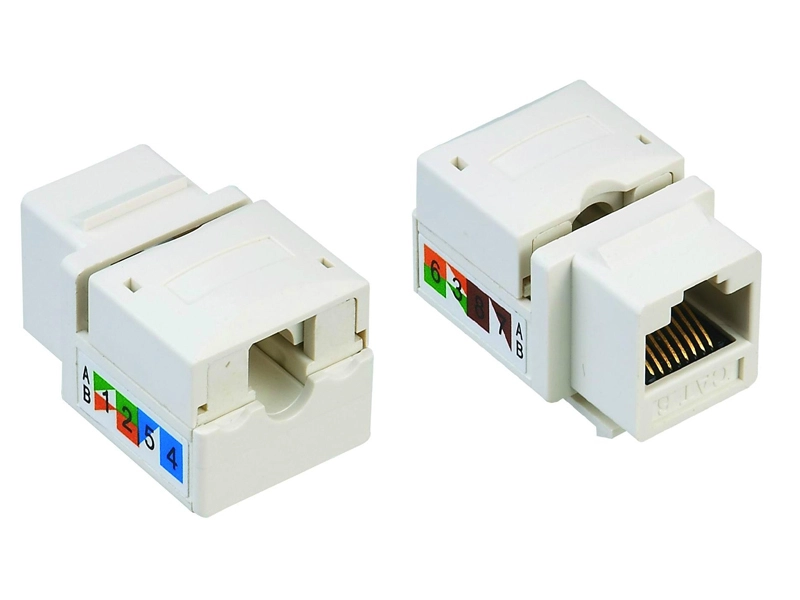

    KLS12-DK8803 AMP Model RJ45 keystone Jack

    ELECTRICAL
    Voltage Rating AC 125V
    Current Rating 1.5 AMPS
    Insulation Resistance 500 MΩ Min
    Withstand Voltage DC 1000V RMS 50-60Hz 1Min
    Contact Resistance 20MΩ MAX

    MECHANICAL
    Insertion Force 2 pins 3.5N      4pins 5N 6 pins 7.5N   8pins  9N
    Retention Strength 70N between jack and plug 60 N between wire and IDC
    Durability Jack 700 mating cycles mini IDC contact 100 stripper cycles mini
    Wire AWG 24-26

    Working Environmental
    Temperature -10°c~+60°c
    Humidity 10~90%
