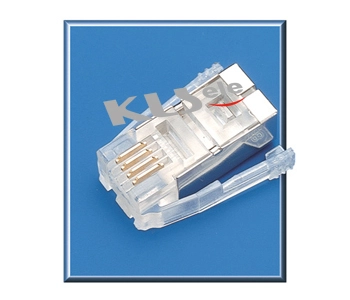

KLS12-RJ11B-4P Modular Plug Shield RJ9/RJ10/RJ22
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
Modular Plug Shield
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS12-RJ11B-4P Modular Plug Shield
Modular Plug Shield RJ9/RJ10/RJ22
ELECTRICAL
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE:100MEGOHMS MIN
CONTACT RESISTANCE:39MILLMHOS MAX
MECHANICAL
CABLE TO PLUG TENSILE STRENGTH:7.7Kg MINI
DURABILITY:750MATING CYCLES MINI
MATERIAL
HOUSING: POLYCARBONATE (PC)UL 94V-0 OR UL 94V-2
CONTACT: PHOSPHOR BRONZE,HARD GOLD PLATED OVER NICKEL
SHIELDING:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH
WORKING TEMPERATURE : -40°C ~80°C
